AMP XL Electric Road Legal UTV

In Stock

Tags: Electric UTV

£14,995.00 ex VAT

£17,994.00 inc VAT

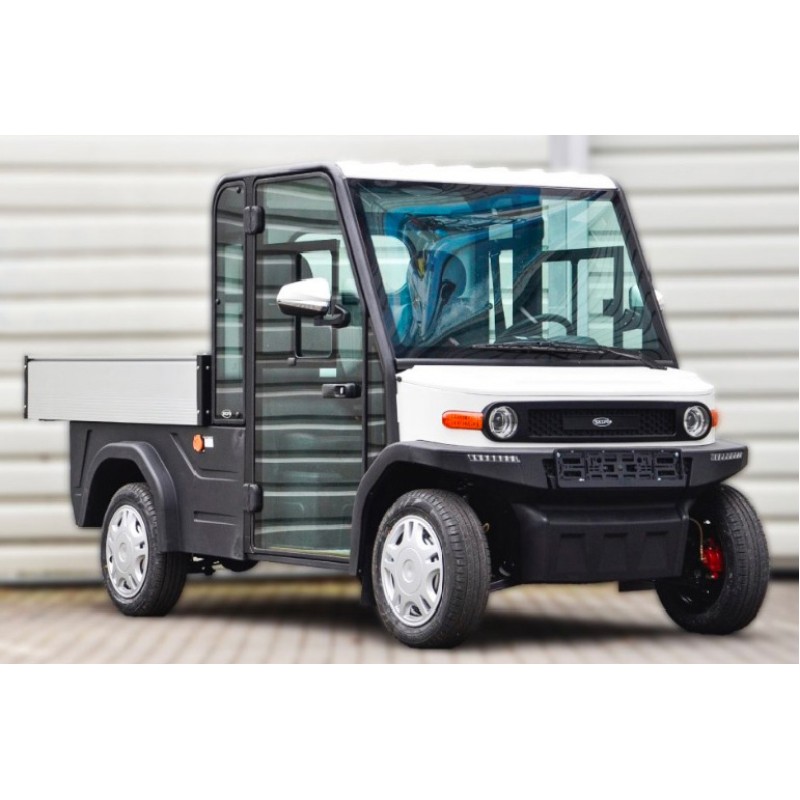

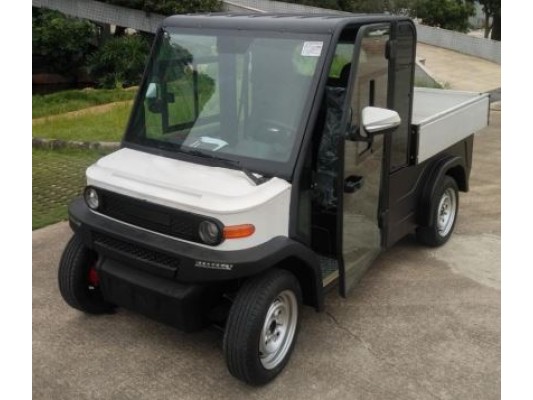

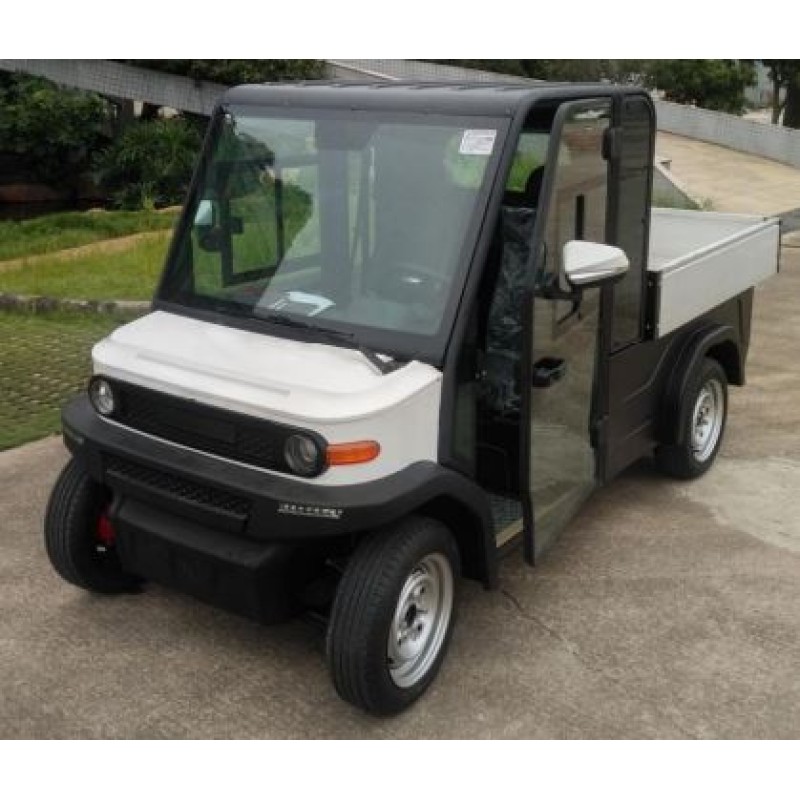

AMP XL Electric Road Legal UTV, with full cab, heater and air con

Qty:

Part Number: AMP-6000

0 reviews / Write a review

Description
About AMP XL Electric Road Legal UTV

This is a AMP XL is a Road Legal Electric UTV with a fully enclosed cab with a heater and air con, for light use and general work. It has a small compact size and thus makes it perfect for security details, and is also suitable for colleges and campuses. The AMP has a pay load capacity of 400 Kgs, and a range of about 30 to 40 miles depending on load and usage.

Power Unit
- Controller: 330A
- Batteries: 12v-150AH x 5
- Energy Consumption: 8.5 KwH (Per 100km)
- Motor: AC 40v/5Kw
- Charger Onboard: 60v/25A
- DC Converter: High Power 60v/12v-400Kw
Drivers Features
- Windshield & Wiper: Car laminated glass, double speed wiper & washer
- On Board Climate: Air Conditioner, Heating power 800w
- Roof: PP plastic injected
- Seat: Foam leather seats with adjustable back
- Floor: Aluminium non-slip flooring
- Body: PP plastic injected front, seat cask and body cover High strength carbon steel cage body
- Rear Mirror: Foldable external mirror
- Steering: Rack and pinion system

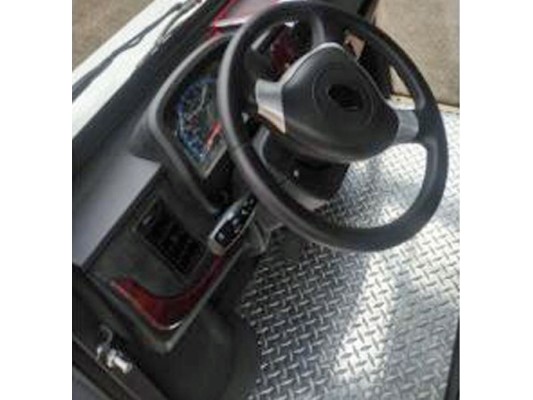

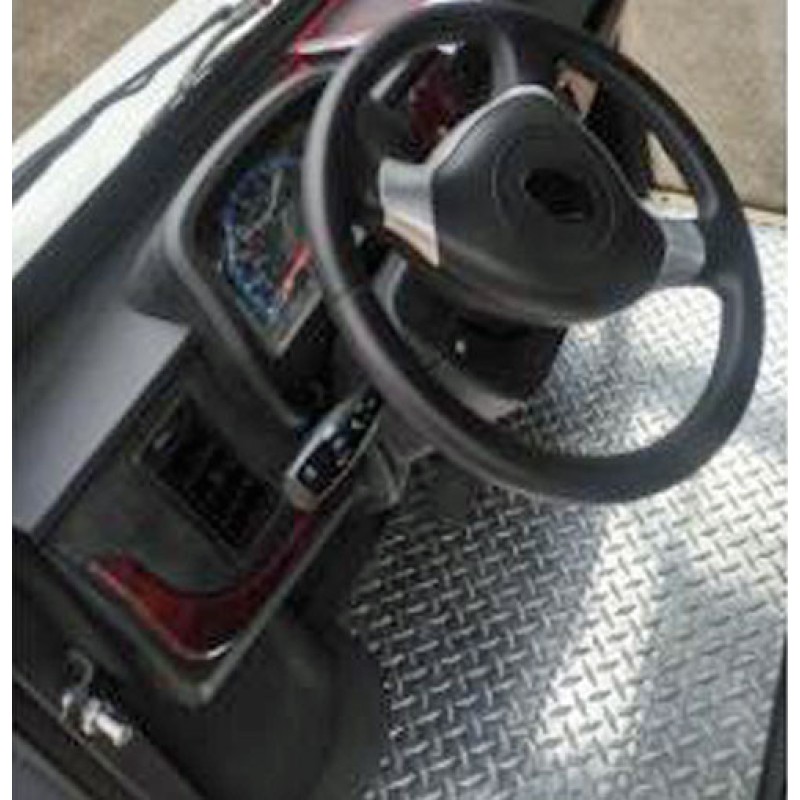

- Dashboard: Plastic moulded dash, combined liquid crystal instrument, electric lock, steering wheel lock, combination switch. Multimedia stereo & 12v power source.
- Lights & Signal: LED lights (dipped headlight, high light, turning light, backup light, position light, brake light) horn & reverse buzzer.
Chassis Specification
- Brake System: Front disc, rear hub, double pipe, double circuit hydraulic brake & hand parking brake.
- Front Suspension: McPherson independent suspension, cylinder hydraulic shock absorption
- Rear Transaxle: Full body transaxle, gear ratio: 12.49:1, plate spring & telescopic shock absorber.
- Tyre 155 65/R13
- Overall Weight 800 kg
- Climbing Ability 20%
- Slope Ability 20%
Dimensions
- Height 1695 mm
- Length 3270 mm
- Width 1370 mm
- Ground Clearance 150 mm

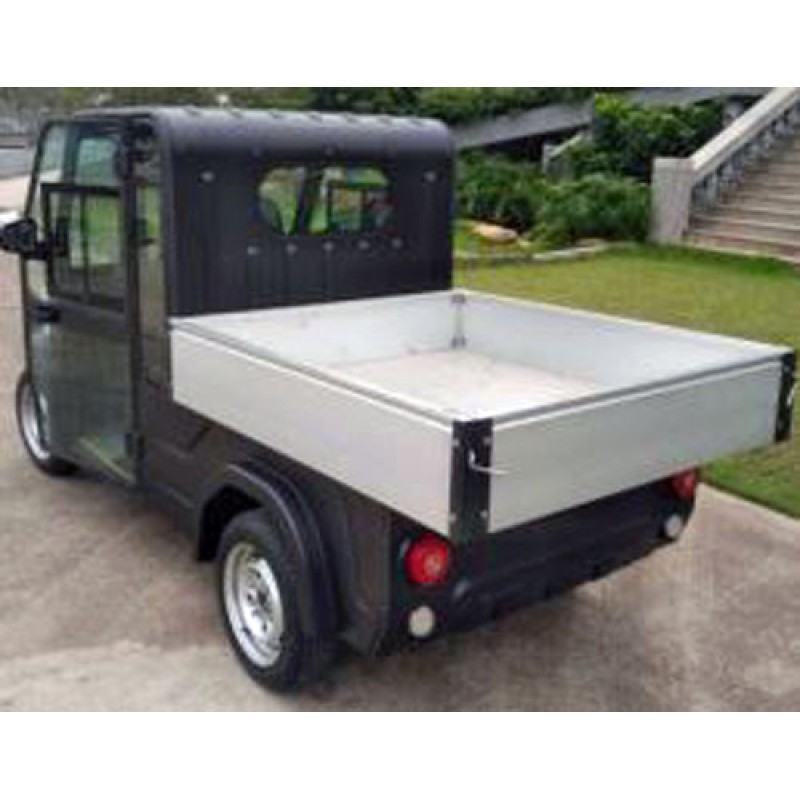

- Cargo Size 1500x1300x265mm
- Cargo Capacity 400kg
- Max Speed 25 mph
- Range: <> 30 to 40 miles
- Wheelbase 2110 mm
- Track Width Front 1170 mm
- Track Width Rear 1175 mm
- Braking Distance <6m
- Turning Radius 5.2m
