BEAST Blue Demo-Show Buggy 150bhp (unfinished) Duffield

In Stock (BW1)

BEAST Blue Demo-Show Buggy 150bhp (unfinished) Duffield

BEAST Blue Demo-Show Buggy 150bhp (unfinished) Duffield

BEAST Blue Demo-Show Buggy 150bhp (unfinished) Duffield

BEAST Blue Demo-Show Buggy 150bhp (unfinished) Duffield

BEAST Blue Demo-Show Buggy 150bhp (unfinished) Duffield

BEAST Blue Demo-Show Buggy 150bhp (unfinished) Duffield

BEAST Blue Demo-Show Buggy 150bhp (unfinished) Duffield

BEAST Blue Demo-Show Buggy 150bhp (unfinished) Duffield

Tags: BEAST

£17,500.00 ex VAT

£17,500.00 inc VAT

BEAST Buggy

Qty:

Brand:Blitzworld - Made in UK
Part Number: BST-6373

0 reviews / Write a review

Description
About BEAST Blue Demo-Show Buggy 150bhp (unfinished) Duffield

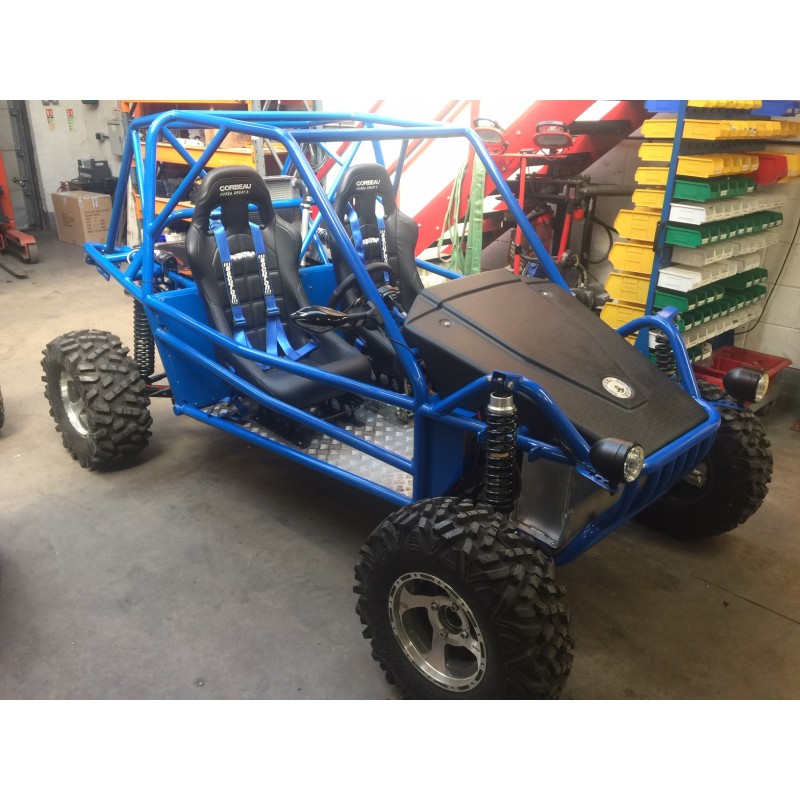

Blitzworld Beast demo & Show Buggy - unfinished project.

Supplied:

Running and re mapped to 150 bhp, IVA running in map removed.

Recomendations
- Buggy needs finishing off and can be made road legal
- Check all nuts and bolts
- Shorter air filter recommended to fit under cover
- Engine cover to fit flat to engine bay
- Side engine covers required if going heavy off road
- Engine needs running in for few hundred miles (brand new)
- More power can be got from this engine once bedded in
- Speedo needs setting up - Manual part 6 & 7 deal with speedo
Specification
BEAST Blue Demo-Show Buggy 150bhp (unfinished) Duffield Specifications
Engine Specification:

Engine Type 16v Ford Zetec-E 2L

ECU Type ME

Engine'cc' 2000 cc

Fuel Type 4 Stroke Petrol

Power (bhp) 150 bhp (mapped)

Torque 174.00 Nm @ 3750 rpm

0 to 60 mph about 6 Seconds

Top Speed 130 mph

Transmission 5 Speed Manual Gearbox

Drive 2 WD Rear with Diff

Diff Lock No

Reverse YES

Oil Cooling Sump

Engine Cooling Water & Oil

mpg 40 mpg +

Clutch Sports Race Clutch (optional)

Start Key

Electrics:

Loom Type Modular Plug & Play

ECU Programable YES - via Software include

ECU Diagnostics YES - via Software include

Dimensions:

Length o/all 3000 mm

Width o/all 1600 mm

Height o/all 1500 mm

Weight (kgs) about 500 Kgs

Centre Of Gravity (COG) Low

Build Features:

Steering Side RHD (no grab rail)

Wheel Sizes 12" or 19" Alloy Wheels available

Frame Colour Orange with Sparkle

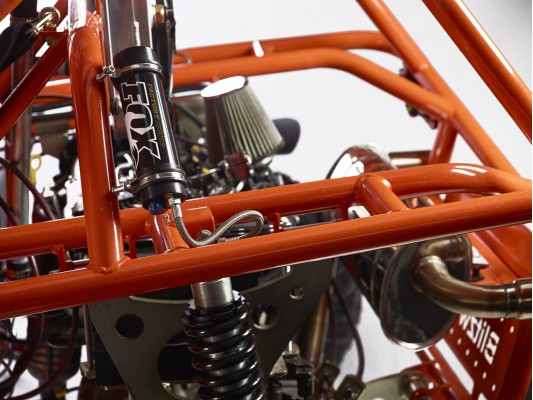

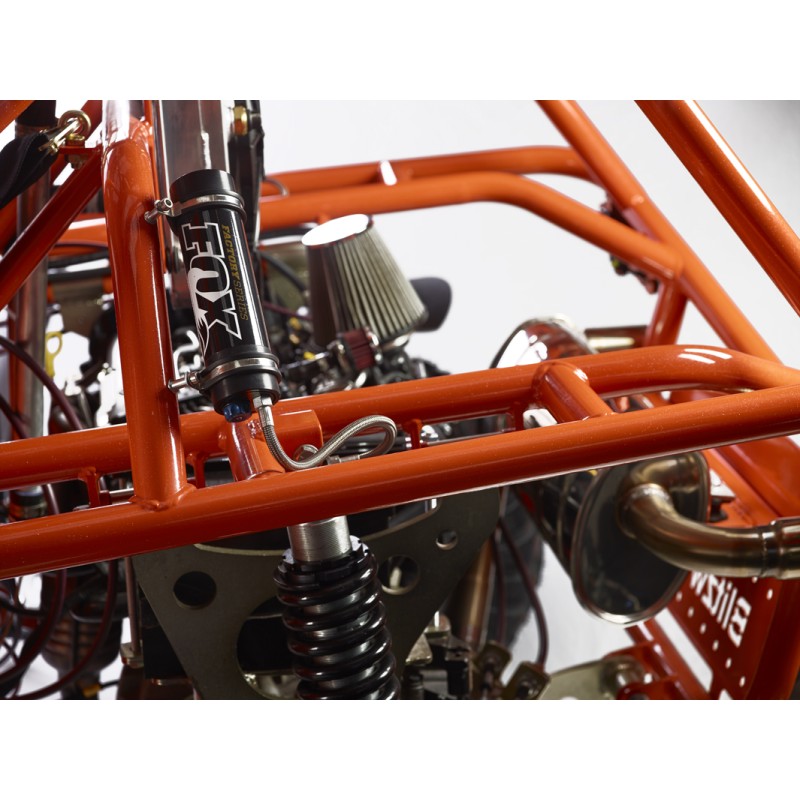

Rear Suspension Trailing Arm with Rebound Damped FOX Gas Suspension

Front Tyres 12" ATV to 19" (Road Legal)

Safety:

Frame Material BRITISH STEEL

Roll Cage Fully Welded Roll Cage

Crumple Zones YES - Front & Rear

Passanger Grip Handles YES

Safety Harness 4 Strap Harness UK made

Seat Runners Double Locking both seats

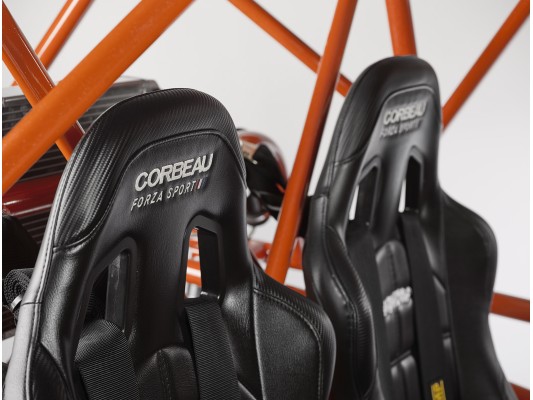

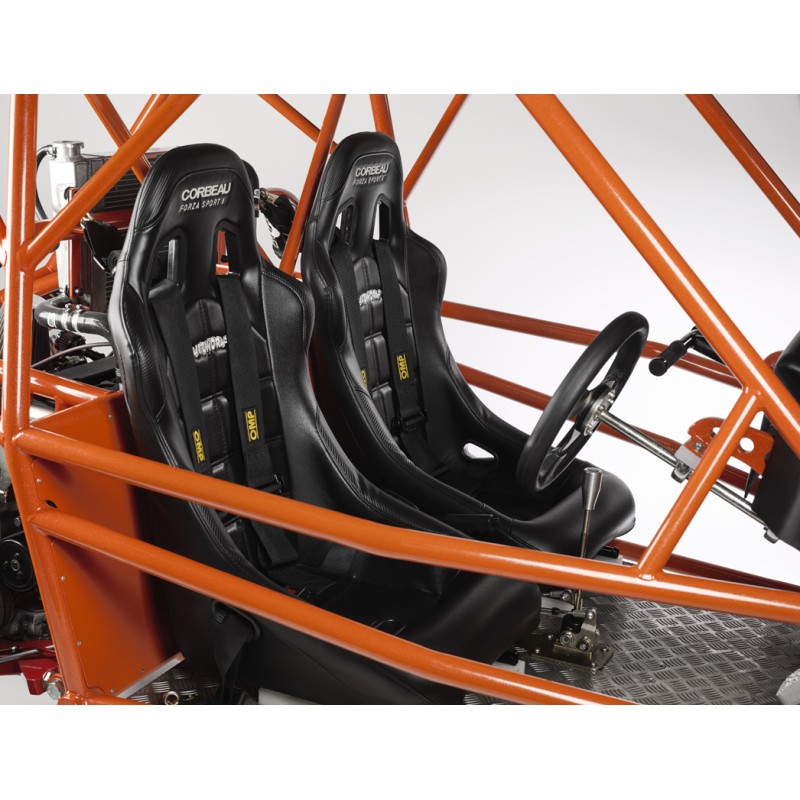

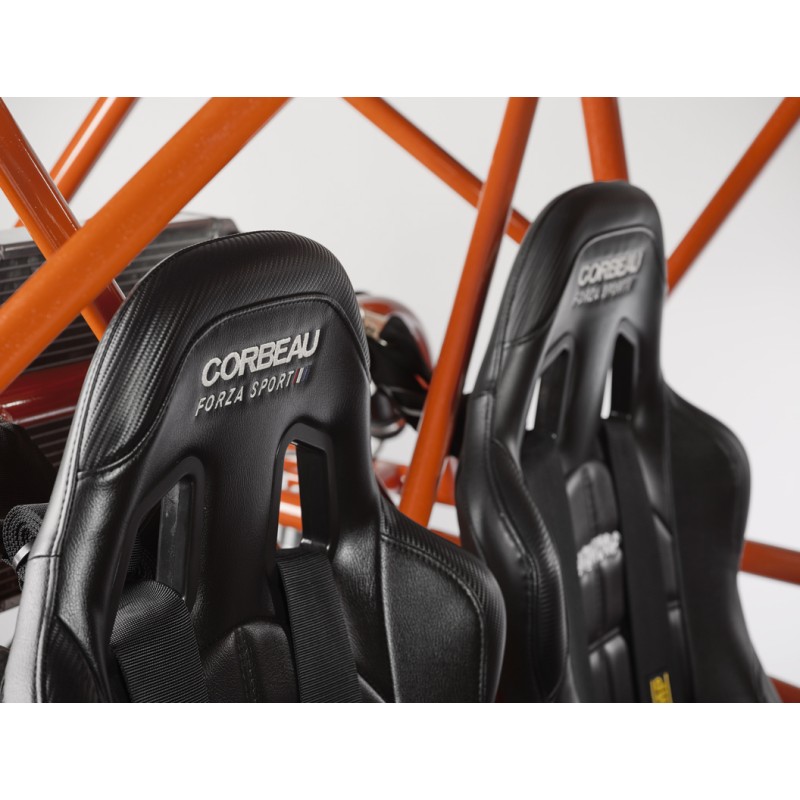

Seats Blitzworld Race Bucket Seat FIA & IVA Approved

Brakes Twin system BIAS Hydraulic Car Disc Brakes Front & Rear

Petrol Tank Position Front - away from Heat & Engine

Petrol Tank Material Alu Baffled with Roll over Breather valve

Bulkheads Metal - Front & Rear

UK Certification UK .gov - VOSA - IVA - Road Legal

Warranty:

Warranty Duration 2 Years Parts & Labour

Chassis 5 Years
Parts

Parts for BEAST Blue Demo-Show Buggy 150bhp (unfinished) Duffield

KIT 01a - Chassis & Painted

The Chassis kit is supplied as a complete frame painted in your colour with the Blitzworld engine ba..

£2,495.00 ex VAT
(£2,994.00)

Ready To Fit

KIT 2a - Trailing Arms

The Vigilante trailing arm unit comes complete with bearings, rod ends and wheel hub fitted. Th..

£795.00 ex VAT
(£954.00)

Ready To Fit

KIT 3a - Front Running Gear & Steering

The front runnging gear kit includes; the front lower arms, front hubs, bearings, brake disc, whee..

£795.00 ex VAT
(£954.00)

Ready To Fit

KIT 4b - Suspension GAZ

This is the budget GAZ suspension kit with rebound damping for the rear arms. The rebound damping pl..

£1,595.00 ex VAT
(£1,914.00)

Ready To Fit

KIT 5a - ATV Wheels & Tyres

The Vigilante ATV wheel package also includes Blitzworlds own high grade Zinc pasifated wheel spacer..

£995.00 ex VAT
(£1,194.00)

Ready To Fit

KIT 6a - Brakes Kit STS

The Blitzworld brake kit includes the brake lines and the calipers and pads. The brake lines are sta..

£795.00 ex VAT
(£954.00)

Plug & Play

KIT 7a - FORD Zetec E engine and Box

Blitzworld are now offering a BRAND NEW 2 Litre FORD Zetec-E engine package for the Vigilante buggy...

£2,995.00 ex VAT
(£3,594.00)

Plug & Play

KIT 8a - Engine Installation Standard

Blitzworld offer 3 standard engine installation options for the Vigilante Sport Chassis, which are: ..

£695.00 ex VAT
(£834.00)

Ready To Fit

KIT 9a - Drive Shafts Joined

The Vigilante drive shafts for engines under 140 bhp are joined. We use the existing gear box dr..

£425.00 ex VAT
(£510.00)

Plug & Play

KIT 10a - STS Exhaust FORD Road Legal

This a Factory built, custom made Stainless steel exhaust with a catalytic converter ..

£795.00 ex VAT
(£954.00)

Plug & Play

KIT 11a - Seats, Belts & Floor

For the Vigilante cumfort we have our own seat made by Corbrau which is a vinile bucket race seat th..

£1,150.00 ex VAT
(£1,380.00)

Ready To Fit

KIT 12a - Gear Lever FORD

The Blitzworld Vigilante gear lever assembly, also comes complete with Blitzworlds own designed..

£465.00 ex VAT
(£558.00)

Ready To Fit

KIT 13 - Handbrake

Vigilante handbrake lever assembly is very strong and robust to take the forces applied due to the n..

£195.00 ex VAT
(£234.00)

Plug & Play

KIT 14a - Pedal Box Hyd-Clutch (FORD) Road Legal

Blitzworld have now designed and made our own pedal box which will accommodate cable or hydraul..

£550.00 ex VAT
(£660.00)

Ready To Fit

KIT 15a - Cooling FORD

The Vigilante FORD Radiator is includes the elbows, hoses and temperature sensor. Supplied: 1 off ..

£595.00 ex VAT
(£714.00)

Ready To Fit

KIT 16a - Fuel System FORD

The Vigilante Fuel Kit is suitable for all engines from 900cc to 2000cc +. The kit includes the fuel..

£850.00 ex VAT
(£1,020.00)

Ready To Fit

KIT 17b - ECU & Engine Loom ME FORD Zetec

The ME engine management system we find is better than Omex or DTA as it has more outputs allowing f..

£1,095.00 ex VAT
(£1,314.00)

Plug & Play

KIT 18a - Plug In Electrics Kit

On most buggies the elctrics on a vehicle are the worst. To solve this problem we have developed a s..

£2,495.00 ex VAT
(£2,994.00)

factory built

KIT 19c - Free Standing Lights compact

The Vigilante lights kit is suited to the Vigilante buggy and the full bodywork kit. The rear lights..

£495.00 ex VAT
(£594.00)

Plug & Play

KIT 21 - DYNO Tune for ECU

When fitting an aftermarket ECU like ME, Omex or DTA they have to be mapped and tuned so that the bu..

£495.00 ex VAT
(£495.00)

new 2024

Beast Bonnet Pinseal Black Effect

Beast Bonnet in pinseal finish, bolts onto the dash panel, and has a cut out for the filler cap (not..

£495.00 ex VAT
